Home > Solutions > Lighting Solutions > Booster 70C

Booster 70C

Exceptional energy efficiency, ultimate performance
Key features:
Mobile greenhouse growlight solution
Proven grass germination and growth even at temperatures close to 0 °C
Reflective cloth cover allows to capture and re-use LED heat
Customizable cloth cover allow for promotional possibilities
10 year LED warranty
Cloth cover increases energy efficiency >30%
Made in the Netherlands white
10 year led warranty white

Booster 70C

Exceptional energy efficiency, ultimate performance

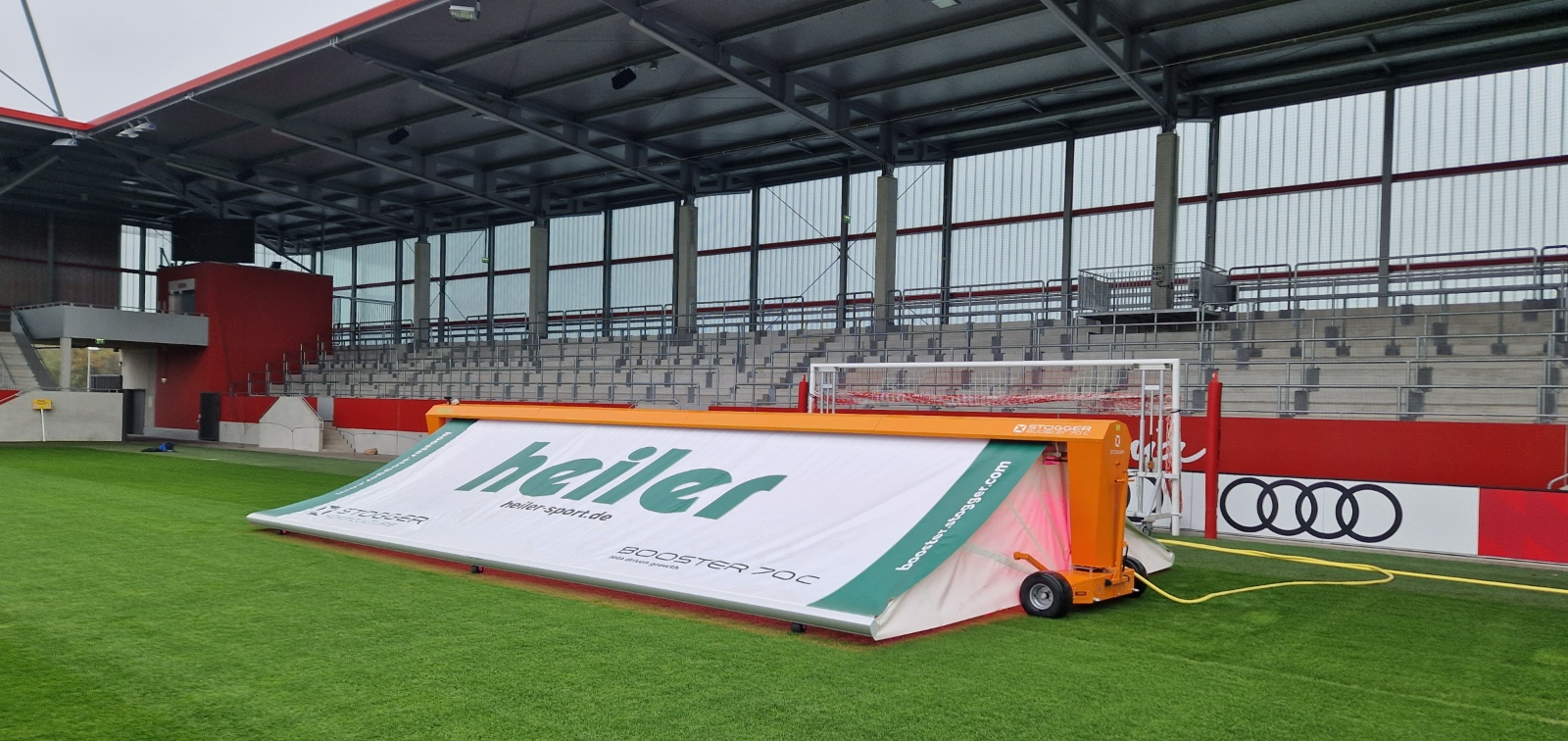

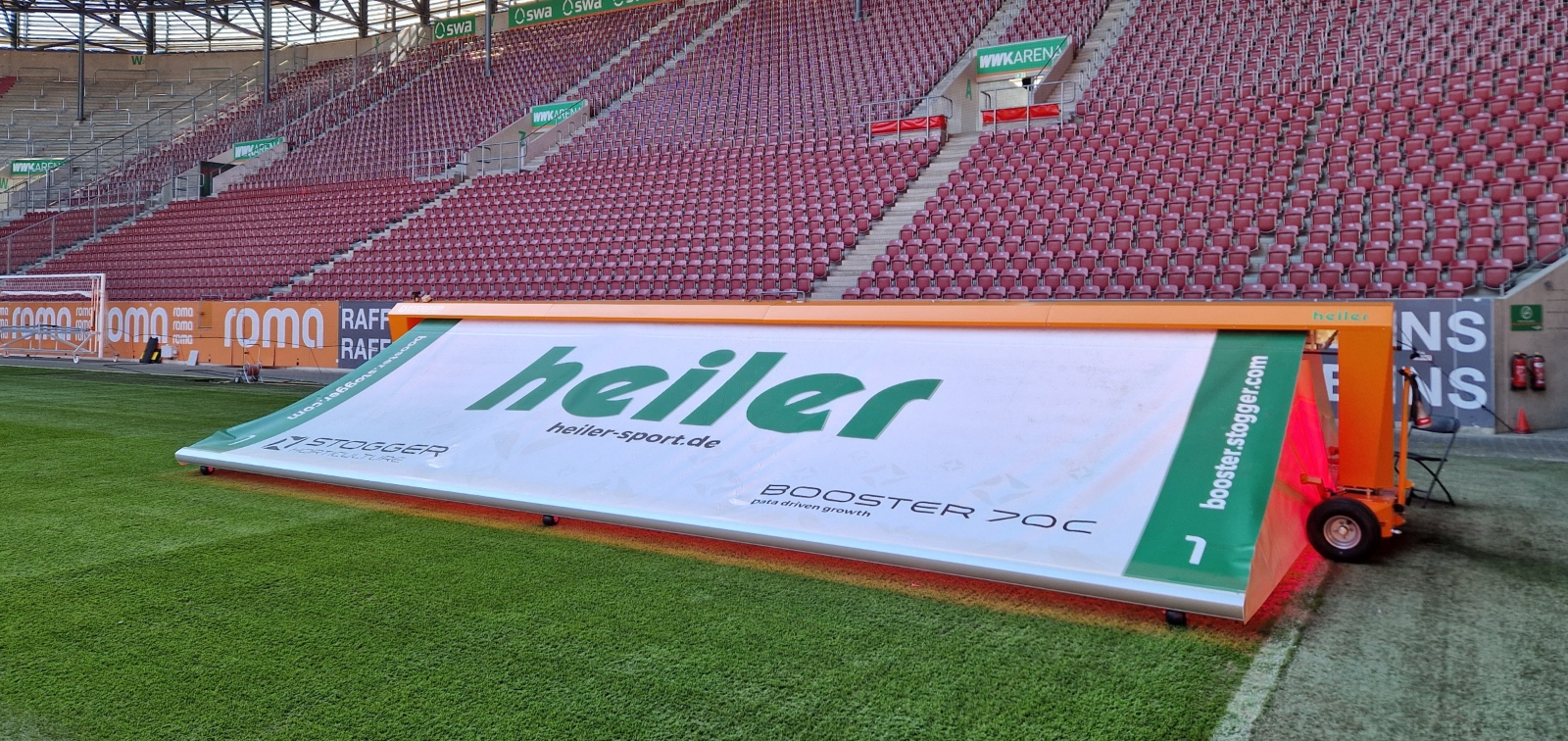

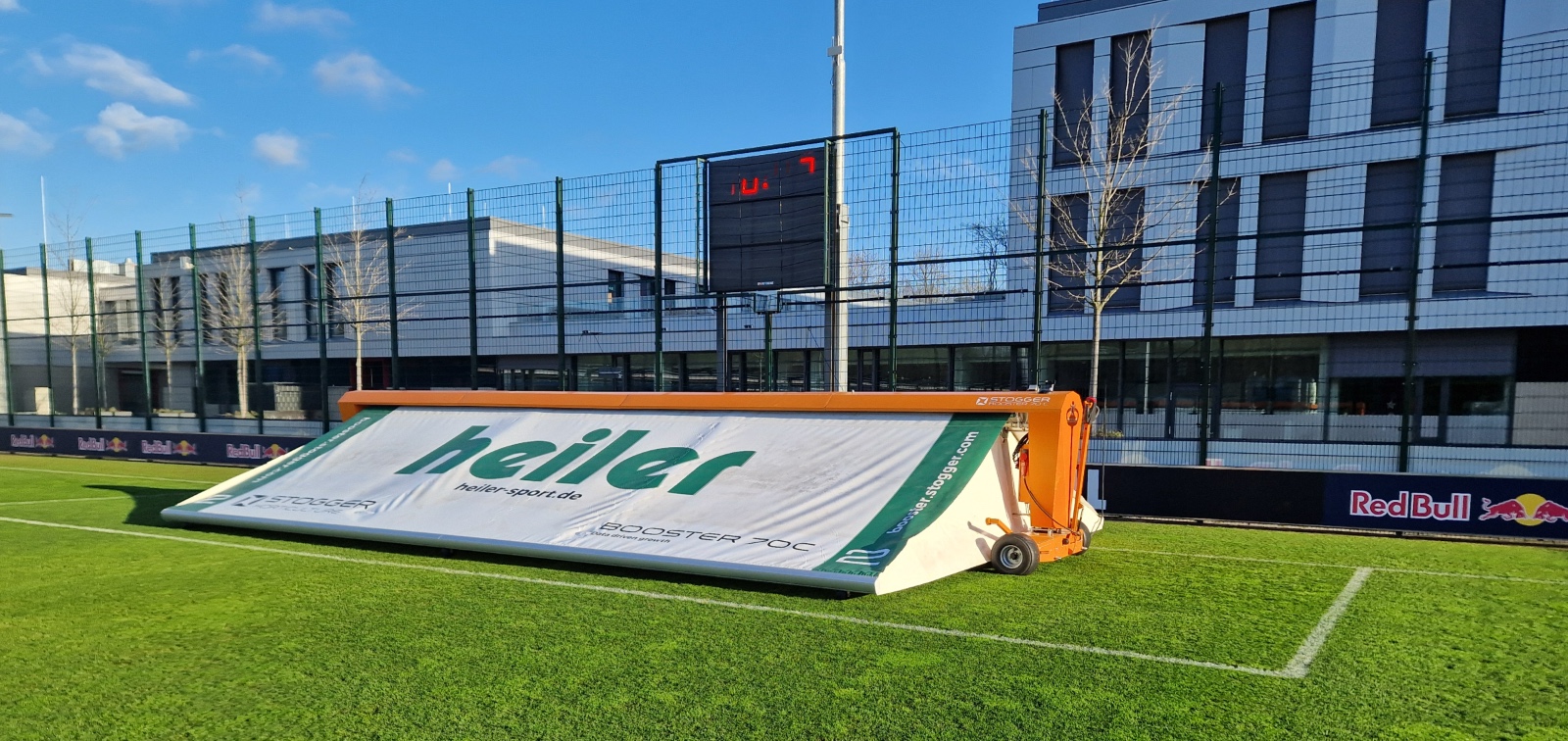

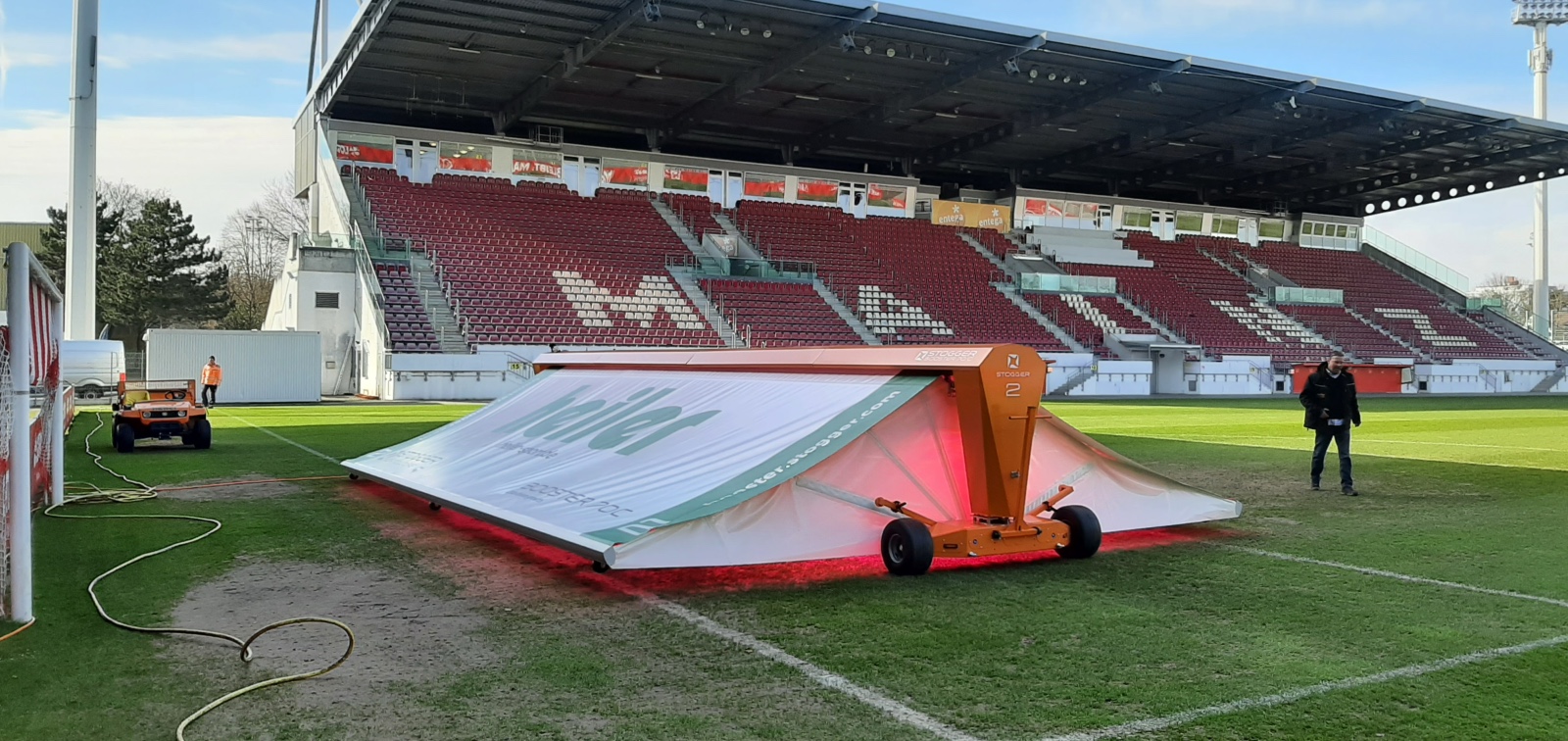

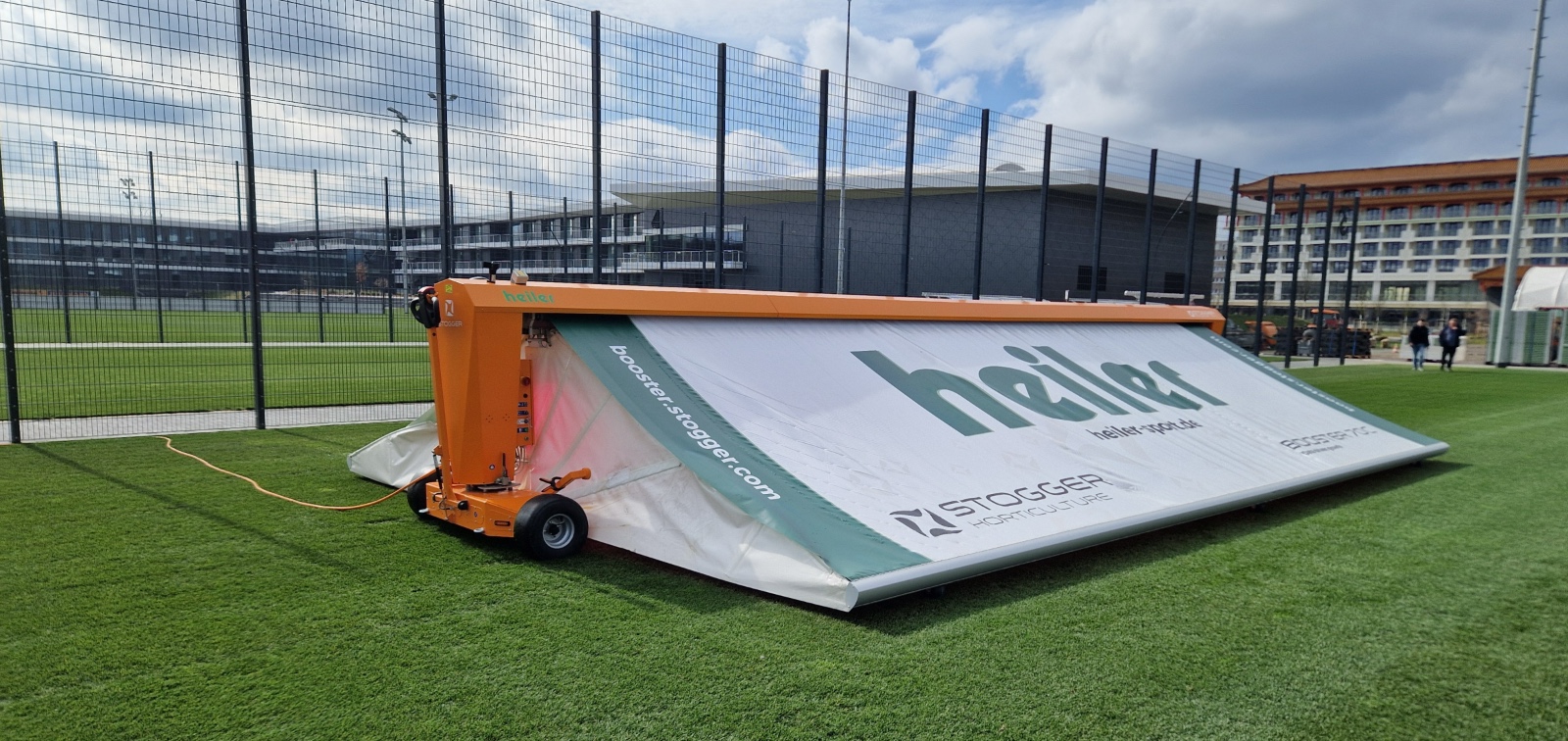

The Booster 70C is a mobile greenhouse for grass growth. This makes it possible to realize grass germination and growth even at temperatures close to 0 °C. It recovers your grass after games and events, and ensures pitch quality throughout the year. This setup is suitable for use in colder climates or in conditions where the soil temperature can become as low as 0 °C (no field heating). Developed for local or small scale grass treatment or research purposes.
Due to the application of state of the art LED lighting from MechaTronix, you generate massive energy savings compared to a comparable HPS SON-T setup. This ensures that you are guaranteed to have the lowest operating costs and, compared to HPS SON-T, have earned back this setup within 3 years. This ensures healthy grass and better growth at lower costs.

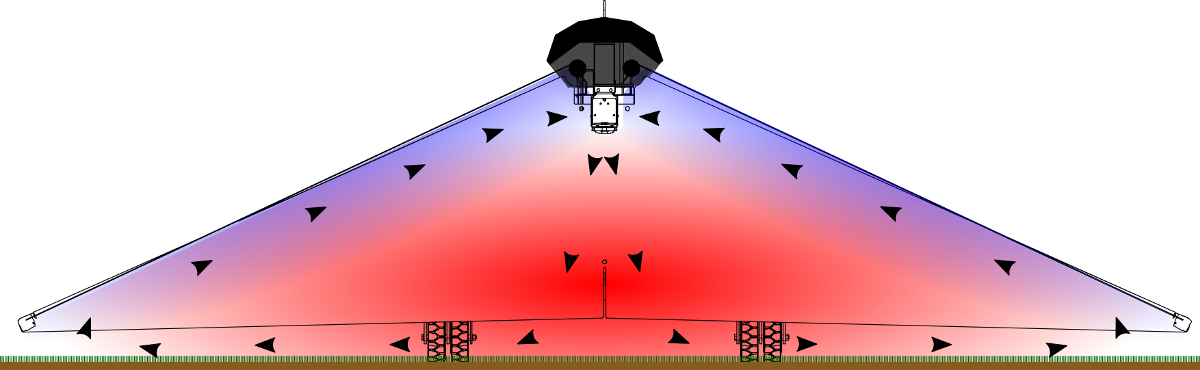

Booster C - Fan heat transfer
Innovative Climate Control allows to re-use the heat generated by the LEDs to increase grass temperature creating a smart mobile grass greenhouse.
All features
Mobile greenhouse growlight solution
Lowest operational costs by using LED
Proven grass germination and growth even at temperatures close to 0 °C
Easy to use, simple design
State of the art LED technology from Mechatronix
90% more light than SON-T
Lowest-cost of ownership
Up to 50% more energy efficient than competing LED systems
Innovative lens design result in homogeneous grass growth
10 year LED warranty
Cloth cover increases energy efficiency >30%
Data controlled grass management system
Customizable cloth cover allow for promotional possibilities
Climate control for reliable growth
Full light spectrum control
Sensor integration
Mobile greenhouse grass grow solution
Key specifications | Booster 70C
Turf lighting area 70 m2
Light control Off / On (softstart/-stop)
LED dimming 0 - 100% (wireless control)
Climate control Yes
Dimensions (LxWxH) 11,5 x 2,1 x 1,8m
Dimensions (LxWxH) 11,5 x 7,0 x 1,8m
LED fixtures 8x Mechatronix CoolStack®
PPFD 445 µmol/m2/s
Energy consumption 9,98 kW (142 W/m2)
Voltage 110 - 400 Vac
Weight ~750kg

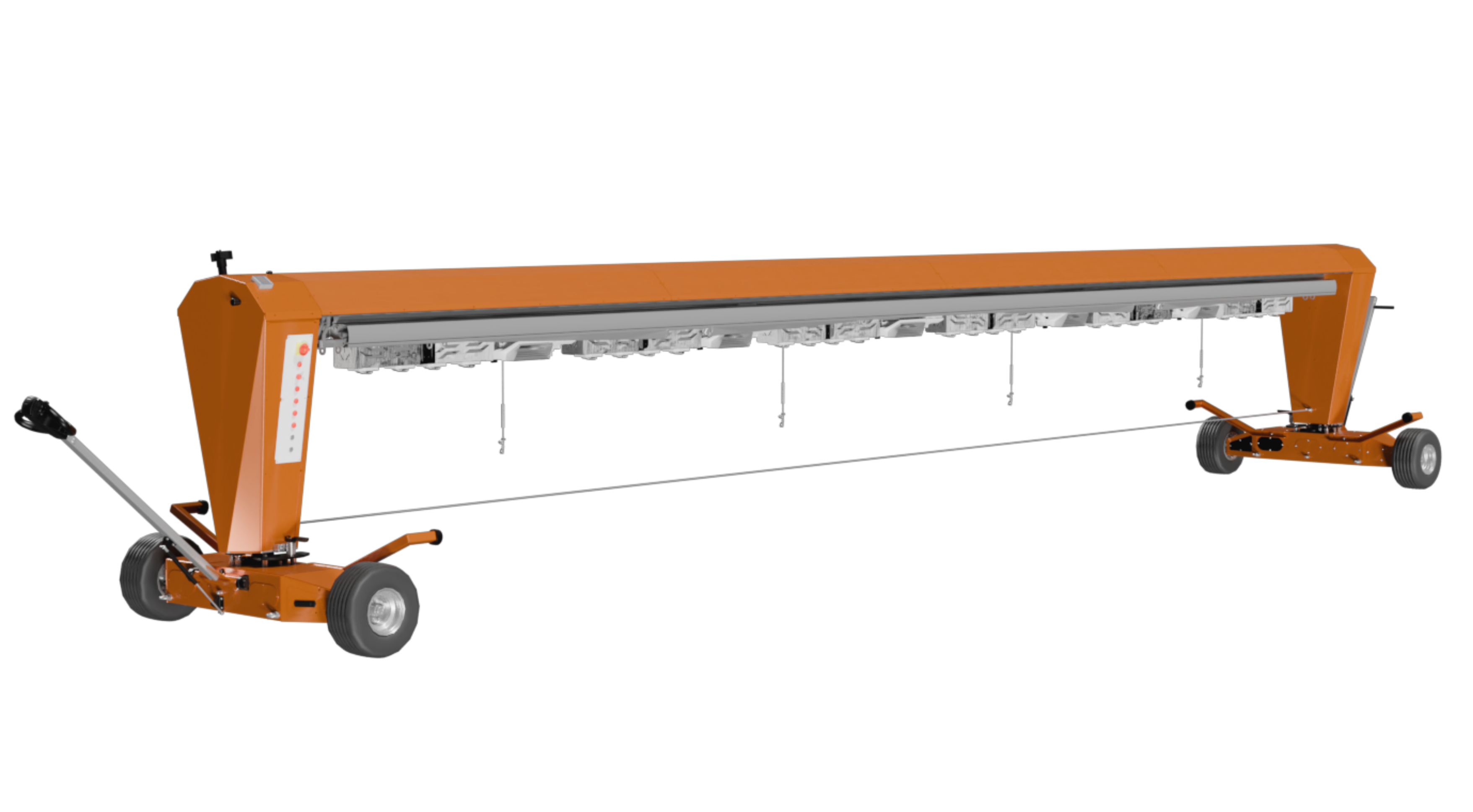

Booster 70 - iso 2

Booster 70C explained

Exceptional simplicity for the lowest costs

Booster 70C

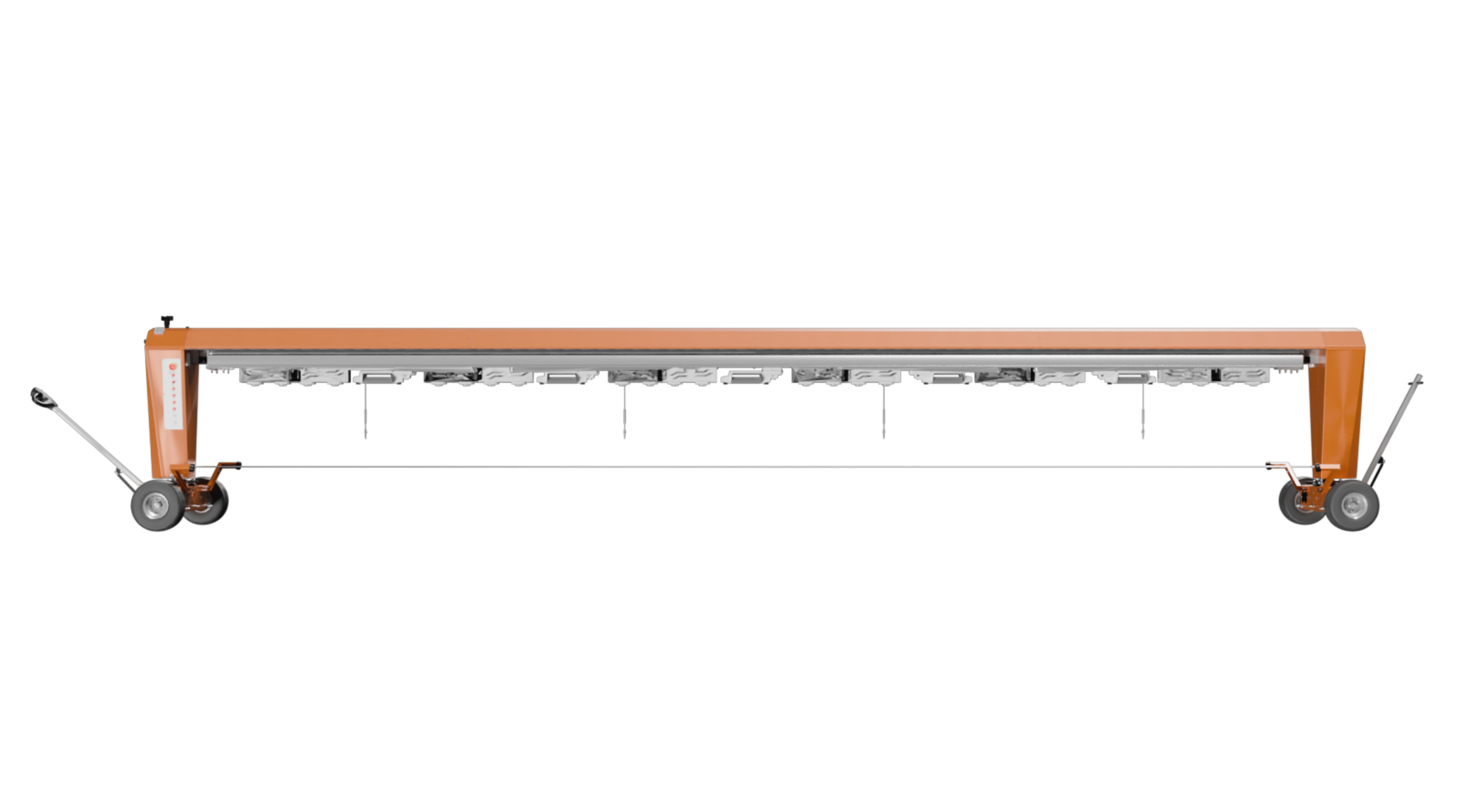

A mobile grass greenhouse on wheels: 8x Mechatronix CoolStack® fixtures generate and capture PAR light as well as heat to to enable the process of photosynthesis for grass to function, recover and stay healthy. The heat is mechanically blown from the fixtures to the turf pitch, stimulating grass growth at low temperatures.
Assembly and installation
Although our Mechatronix CoolStack® LED solution has a market leading energy efficiency, the residual heat generated in the fixtures, is used to increase the grass leaves temperature, allowing the grass to germinate even at nearly freezing temperates.
Addionally, 25% light reflection of the grass is reflected back to the turf pitch by the Climacloth.
Convenient usage
The Booster 70C is delivered complete and ready to use. Due to the very light and compact design and castors, the Booster 70C is easily maneuverable and replaceable by only 1 fieldmanager. Innovative design ensures that there is no danger for overturning.
Easy control
The control is easy and intuitive. Manual controls allow to put the Booster on and off and the screens to open and close. Wireless control using our monitoring tool, additionally allows for creating lighting time tables and dimming levels.

Request a turf care advice

Are you looking to ensure grass growth and recovery throughout the year, while maintaining a consistently strong and healthy turf pitch?

We can help you reach your goals through our innovative turf care systems and data driven approach. With our innovative approach, we aim to become your reliable and innovation partner in providing a diverse range of turf care and growlight solutions.
