Booster 480
Cost-efficient solution to treat large turf surfaces
Key features:
Affordable, large-scale turf care growlight solution
Height adjustable solution to treat 240 - 480 m2 of grass
Flexible light as well as heat intensity
Available in both HPS-SON-T, LED as well as Hybrid lighting
Data controlled grass management system
10 year LED warranty
Booster 480
Large surface turf lighting solution
The Stogger Booster 480 is an cost-efficient height adjustable grass grow solution. It is suitable to treat large turf surfaces between 240 and 480 m2 at different intensities. It offers both HPS SON-T, It recovers your grass after games and events, and ensures pitch quality throughout the year. The solution is both suitable for use in warm as well as cold climates. The lighting as well as heat intensity can be adjusted to prevent tipburn of the grass. Due to the application of state of the art LED lighting from Mechatronix, we ensure that you are guaranteed to have the lowest operating costs and, compared to HPS SON-T, have earned back this setup within 3 years.
All features
Large surface growlight solution
Developed as a scalable grass treatment solution
Rental possible
Lowest operational costs by using LED
10 year LED warranty
Easy to use, simple design
Data controlled grass management system
State of the art LED technology from Mechatronix
90% more light than a 1000 watt HPS SON-T for the same energy!
Full light spectrum control
Fast delivery
Up to 50% more energy efficient than competing LED systems
Sensor integration
Innovative lens design result in more homogeneous grass growth
Height reduction also possible without electricity
| Key specifications | Booster 480 | HPS SON-T / LED / HYBRID |
|---|---|
| Turf lighting area | 480 m2 |
| Light control | Off / On (softstart / -stop) |
| Climate control | No |
| Dimensions (LxWxH) | 11,6 x 2,4 x 3,1m |
| Voltage | 110 - 400 Vac |
| Booster 480 LED | Specifications |
| LED fixtures | 36x Mechatronix CoolStack® |
| LED PPFD average | 307 µmol/m2/s |
| LED Energy consumption | 44,9 kW (94 W/m2) |
| LED Market leading efficiency | 3.485 µmol/J |
| LED dimming | 0 - 100% (wireless control) |
| Total weight | ~2000kg |
| Booster 480 HPS SON-T | Specifications |
| HPS SON-T fixtures | 72x Dutch Lighting Innovations |
| HPS PPFD average | 320 µmol/m2/s |
| HPS Energy consumption | 72 kW (150 W/m2) |
| HPS light efficiency | 2.100 µmol/J |
| HPS dimming | No, ON/OFF only |
| Total weight | ~1600kg |
Booster 480 explained

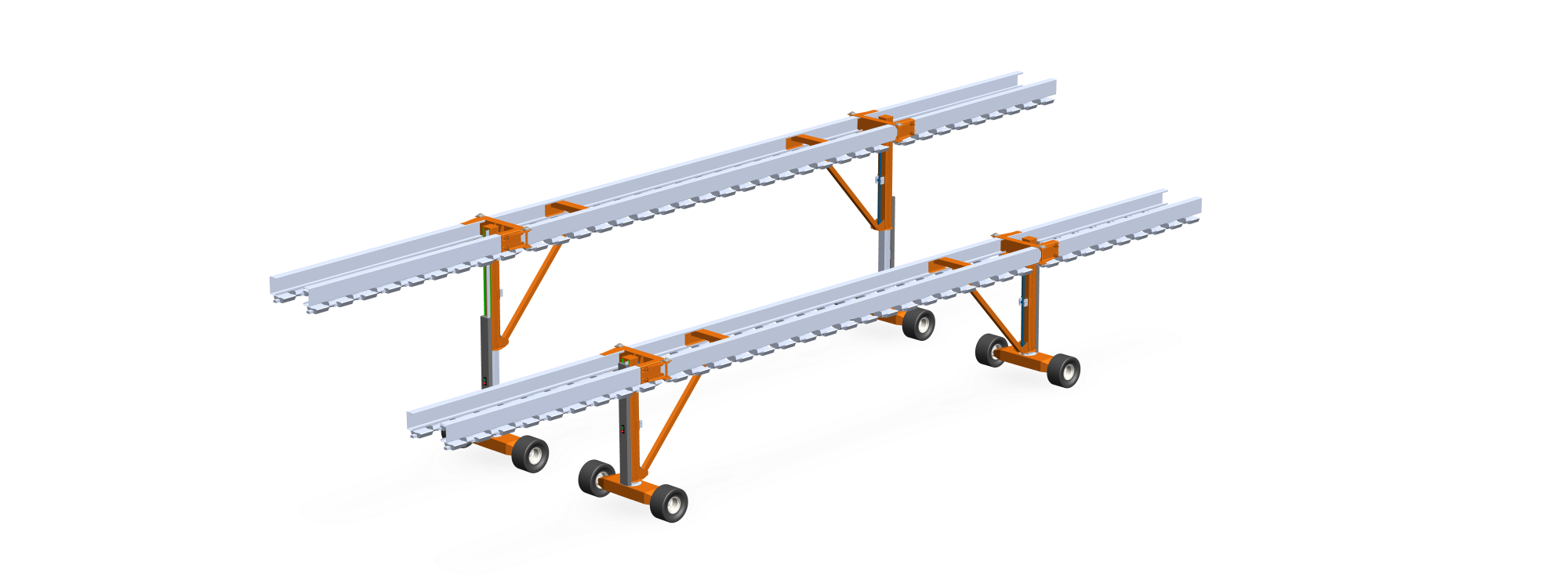

Height adjustable turf-lighting system
Booster 480 HPS & LED
HPS, LED or a combination of both fixtures generate PAR light to to enable the process of photosynthesis by which a plant produces the food material (carbohydrates) it needs to function, recover and stay healthy.
HPS, LED or a combination of both fixtures generate PAR light to to enable the process of photosynthesis by which a plant produces the food material (carbohydrates) it needs to function, recover and stay healthy.
Assembly and installation
The Booster 480 is delivered complete and ready to use. Connect to the electricity grid and start lighting the grass! We will provide you the necessary knowledge to plan your lighting.
The Booster 480 is delivered complete and ready to use. Connect to the electricity grid and start lighting the grass! We will provide you the necessary knowledge to plan your lighting.
Convenient usage
Due to the aluminium frames, the Booster 480 is easily maneuverable and replaceable by 2 fieldmanagers. Additional integrated motorized axles are available for replacing by 1 fieldmanager.
Due to the aluminium frames, the Booster 480 is easily maneuverable and replaceable by 2 fieldmanagers. Additional integrated motorized axles are available for replacing by 1 fieldmanager.
Easy control
The control is easy and intuitive. Manual controls allow to put the Booster on and off. Wireless control using our monitoring tool, additionally allows for creating lighting time tables and dimming levels.
The control is easy and intuitive. Manual controls allow to put the Booster on and off. Wireless control using our monitoring tool, additionally allows for creating lighting time tables and dimming levels.
